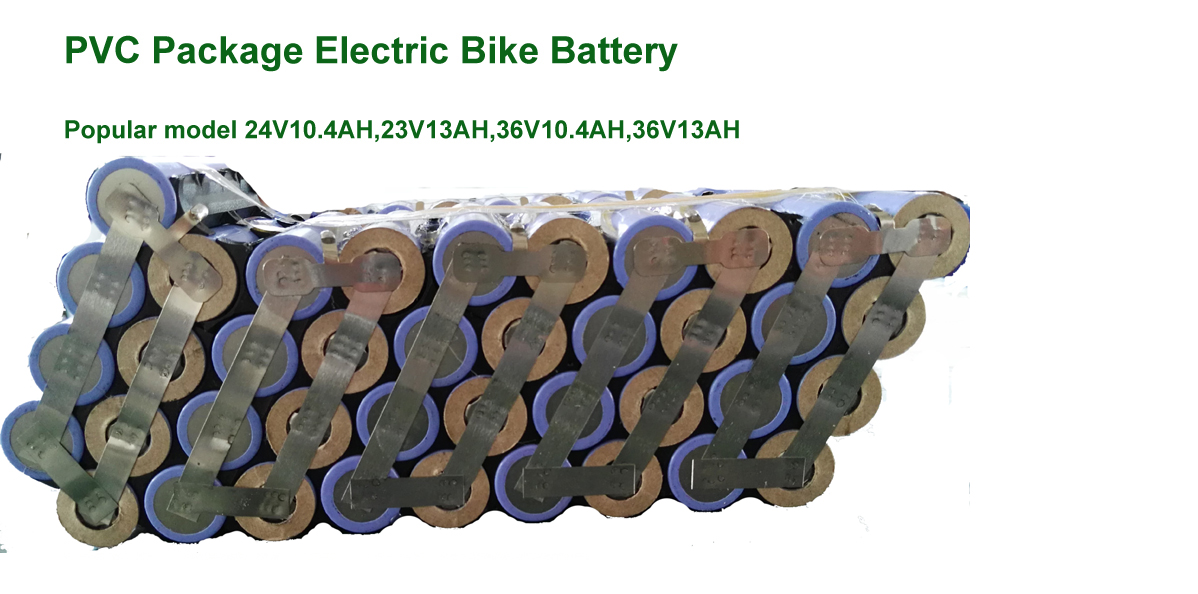

Popular PVC package battery drawing |
|||
|---|---|---|---|
 |

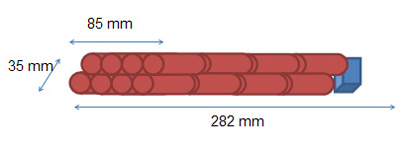

MODEL A
30 cells, 10s3p
(36V 6,6Ah or 36V 7,8Ah)
28 cells, 7s4p
(24V 8,8Ah or 24V 10,4Ah)
|
 |

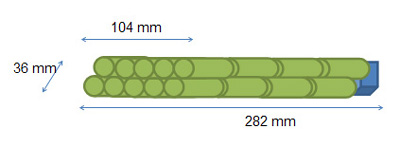

MODEL B
40 cells, 10s4p
(36V 8,8Ah or 36V 10,4Ah)
35 cells, 7s5p
(24V 11,0Ah or 24V 13,0Ah)
32 cells, 8s4p
(29V 8,8Ah or 29V 10,4Ah)
|
 |

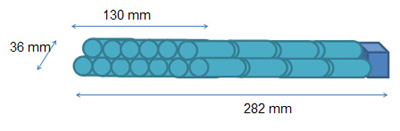

MODEL C
50 cells, 10s5p
(36V 11,0Ah or 36V 13,0Ah)
49 cells, 7s7p
(24V 15,4Ah or 24V 18,2Ah)
|
 |

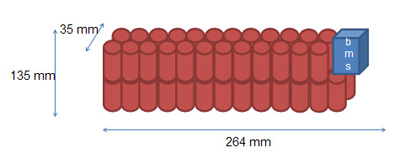

MODEL D
50 cells, 10s5p
(36V 11,0Ah or 36V 13,0Ah)
49 cells, 7s7p
(24V 15,4Ah or 24V 18,2Ah)
|
 |

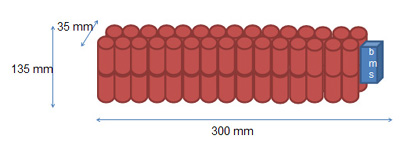

MODEL E
60 cells, 10s6p
(36V 13,2Ah or 36V 15,6Ah)
56 cells, 7s8p
(24V 17,6Ah or 24V 20,8Ah)
|
 |

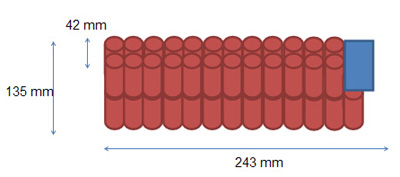

MODEL F
50 cells, 10s5p
(36V 11,0Ah or 36V 13,0Ah)
49 cells, 7s7p
(24V 15,4Ah or 24V 18,2Ah)
|
 |

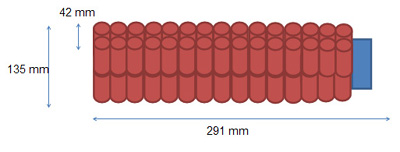

MODEL G
60 cells, 10s6p
(36V 13,2Ah or 36V 15,6Ah)
56 cells, 7s8p
(24V 17,6Ah or 24V 20,8Ah)
|
 |

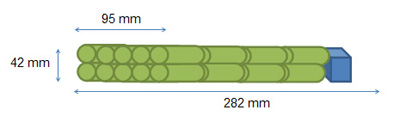

MODEL H
40 cells, 10s4p
(36V 8,8Ah or 36V 10,4Ah)
35 cells, 7s5p
(24V 11,0Ah or 24V 13,0Ah)
32 cells, 8s4p
(29V 8,8Ah or 29V 10,4Ah)
|
 |

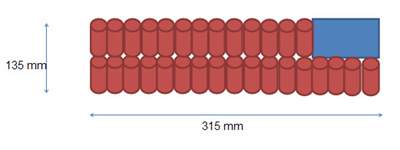

MODEL I
30 cells, 10s3p
(36V 6,6Ah or 36V 7,8Ah)
|
 |

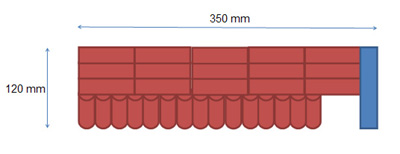

MODEL J
30 cells, 10s3p
(36V 7,8Ah)
28 cells, 7s4p
(24V 10,4Ah)
|
 |

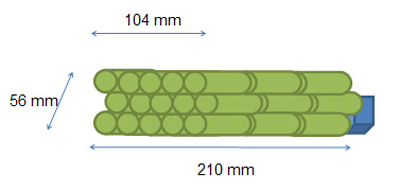

MODEL K
40 cells, 10s4p
(36V 10,4Ah)
|
 |
MODEL L
60 cells, 10s6p
(36V 15.6Ah)
|
